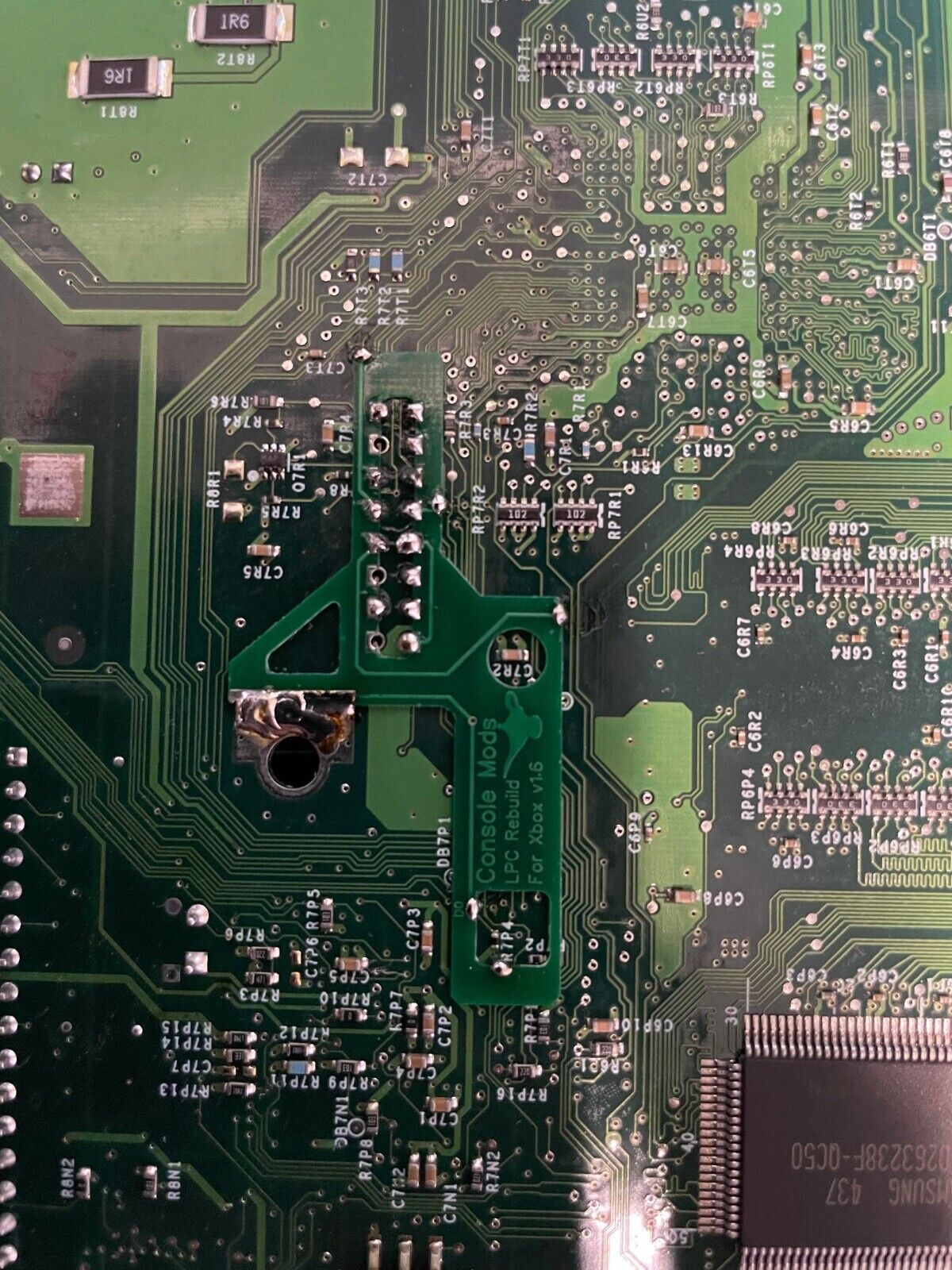

2PC Xbox Original LPC Rebuild for 1.6 board 2004/4 and upwards

Original Xbox 1.4 LPC Rebuild PCB

This pcb is for an Original Xbox console that has either a revision v1.6 or v1.6b mainboard (these are dated from dated 2004/4 and upwards).

As the DO point is already part of the pcb, you do not need to tie/solder a wire from d0 to the chip or to ground as it is already included on the pcb.

This is a much a quicker and cleaner way of doing v1.6 rebuilds as you only need to solder the PCB to the header of your debugging chip (which is also available to buy.

Note: This item will be send via letter post.
